HENDERSON MUNICIPAL LIQUID ANTI-ICING, DEICING, Sand, & Salt Spreader
Turns any body into a spreader
BCS Body Conversion Spreader can be used by itself through a dump body coal chute or paired with the Wedge Tank Kit
Service Manual
BCS BODY CONVERSION SPREADER
Slides into any tailgate with a 24" coal chute opening. 10' to 15' lengths.

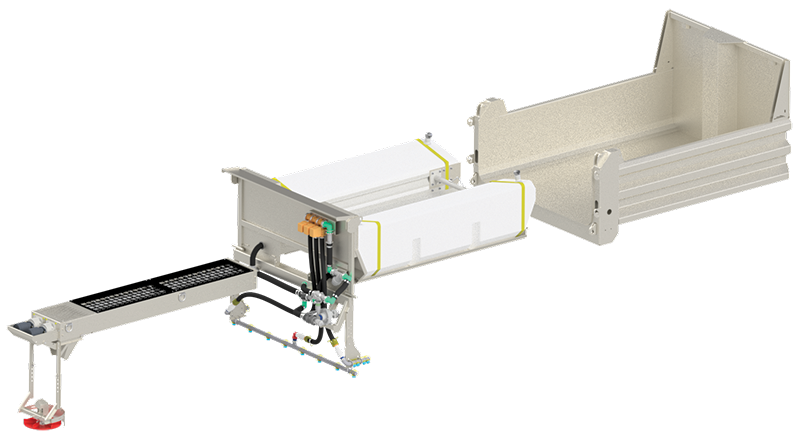

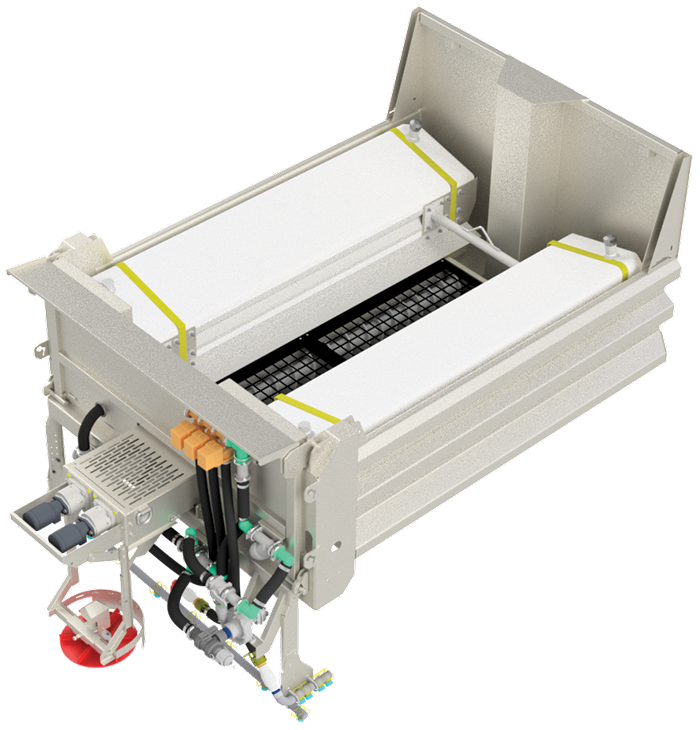

BCS BODY CONVERSION SPREADER WITH WEDGE TANK KIT
Slides into any dump body to add anti-icing and prewet capability. A complete system with a BCS dual auger conveyor, frame, wedge tanks, all plumbing, end gate and spinner.
Optional Wedge Tank Kit
10' 520 gallon (twin 260 gallon tanks) for 10' to 12.5' bodies
13' 900 gallon (twin 450 gallon tanks) for 13' to 15' bodies
Fits in any dump body
Dual augers
10' to 15' lengths
Wedge Tank Kit comes with end gate to turn any dump body into an affordable full snow and ice control package

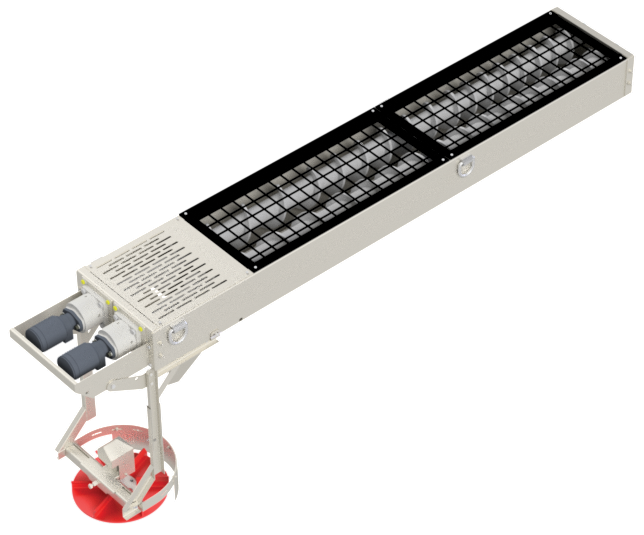

Dual auger conveyor drive using 24.7
CIR hydraulic motors and a 3:6:1
planetary gearcase
Built-in screens
Lifting D-rings for easy
Installation and removal
Dual 7” variable pitch augers
Available in 10’ to 15’ lengths
Tip-up spinner with top mount
protected spinner motor
Cleanout on each side of the
conveyor system
T-junction for adding prewet
capability
1- and 3-lane spray boom
capability
Hydraulic motor
2.8 CIR for spinner
Flow meter
Filter
Shut-off valve
18” poly spinner

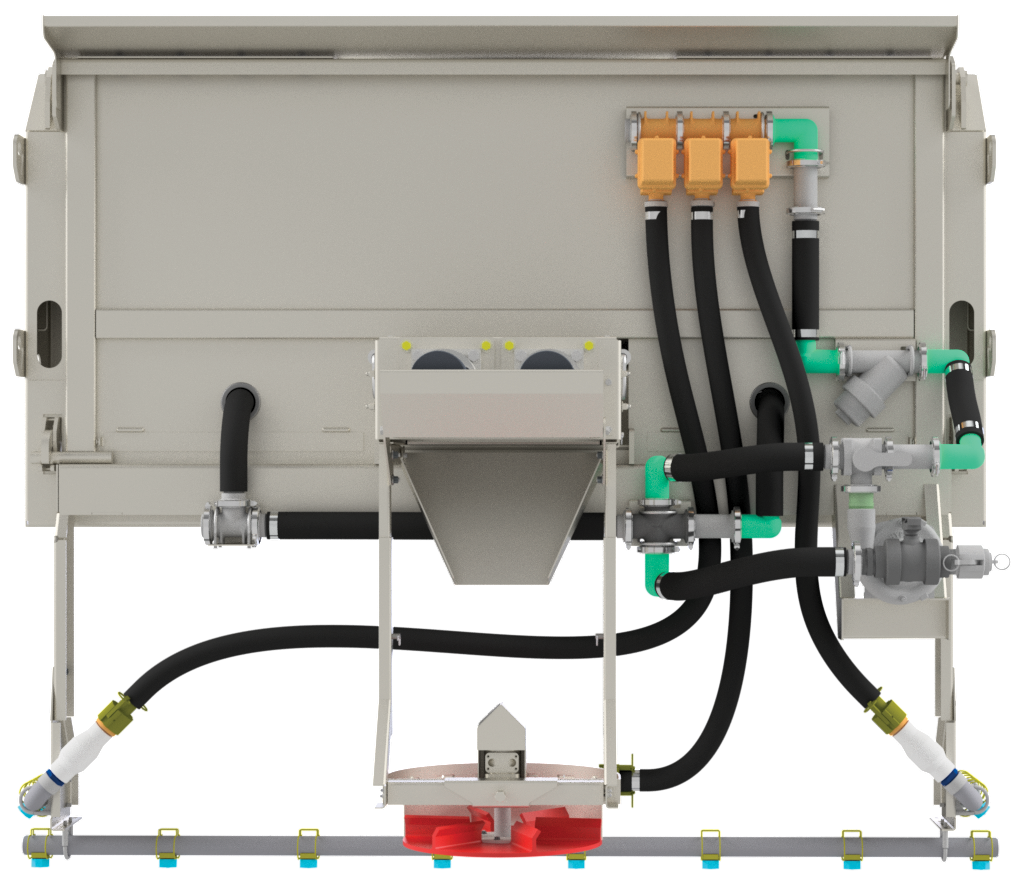

Electric valving on end gate with spill shield protection
207 GPM centrifugal pump supplies 1- and 3-lane applications
