HENDERSON MUNICIPAL DUMP BODY HOISTS

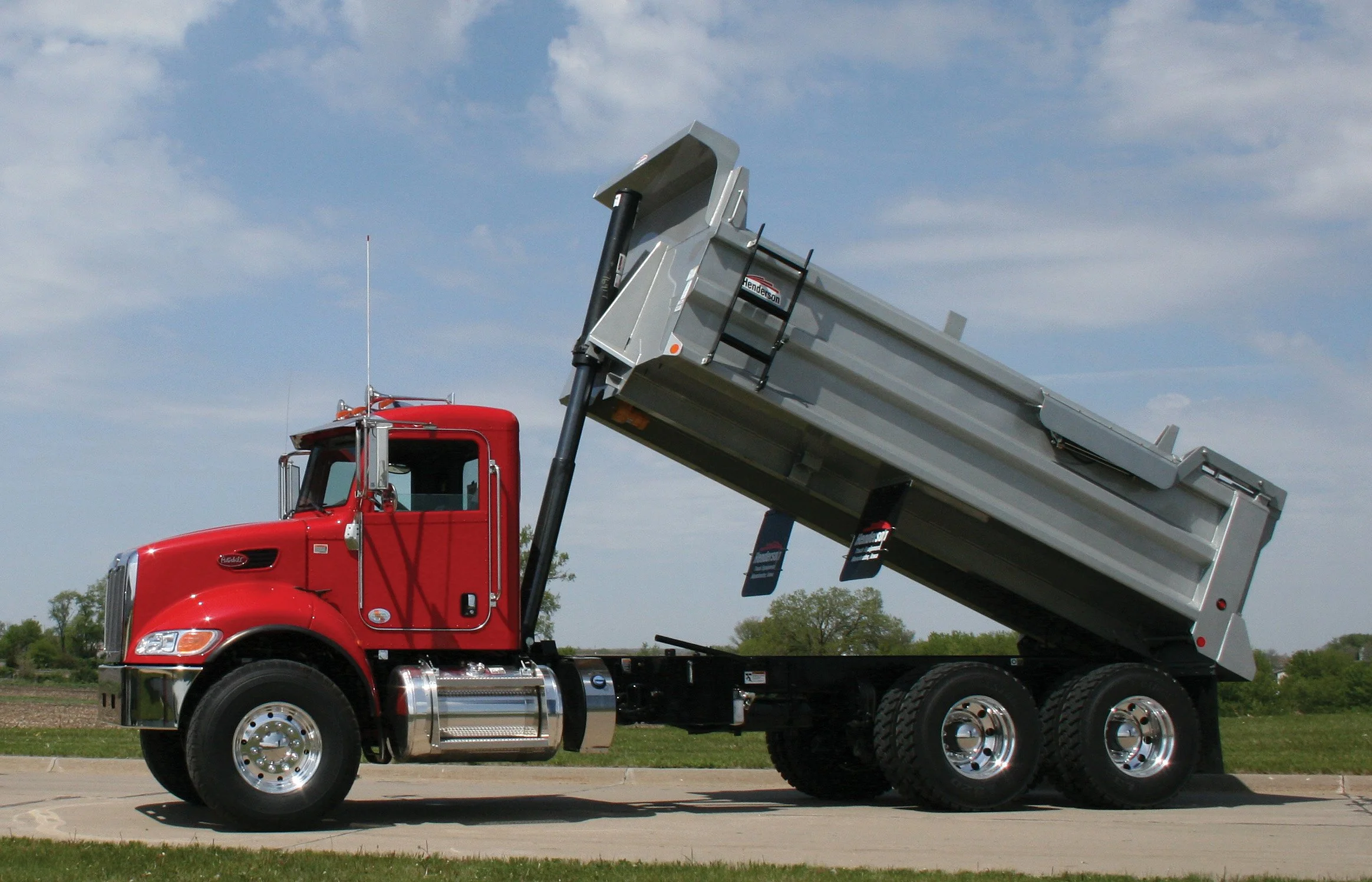

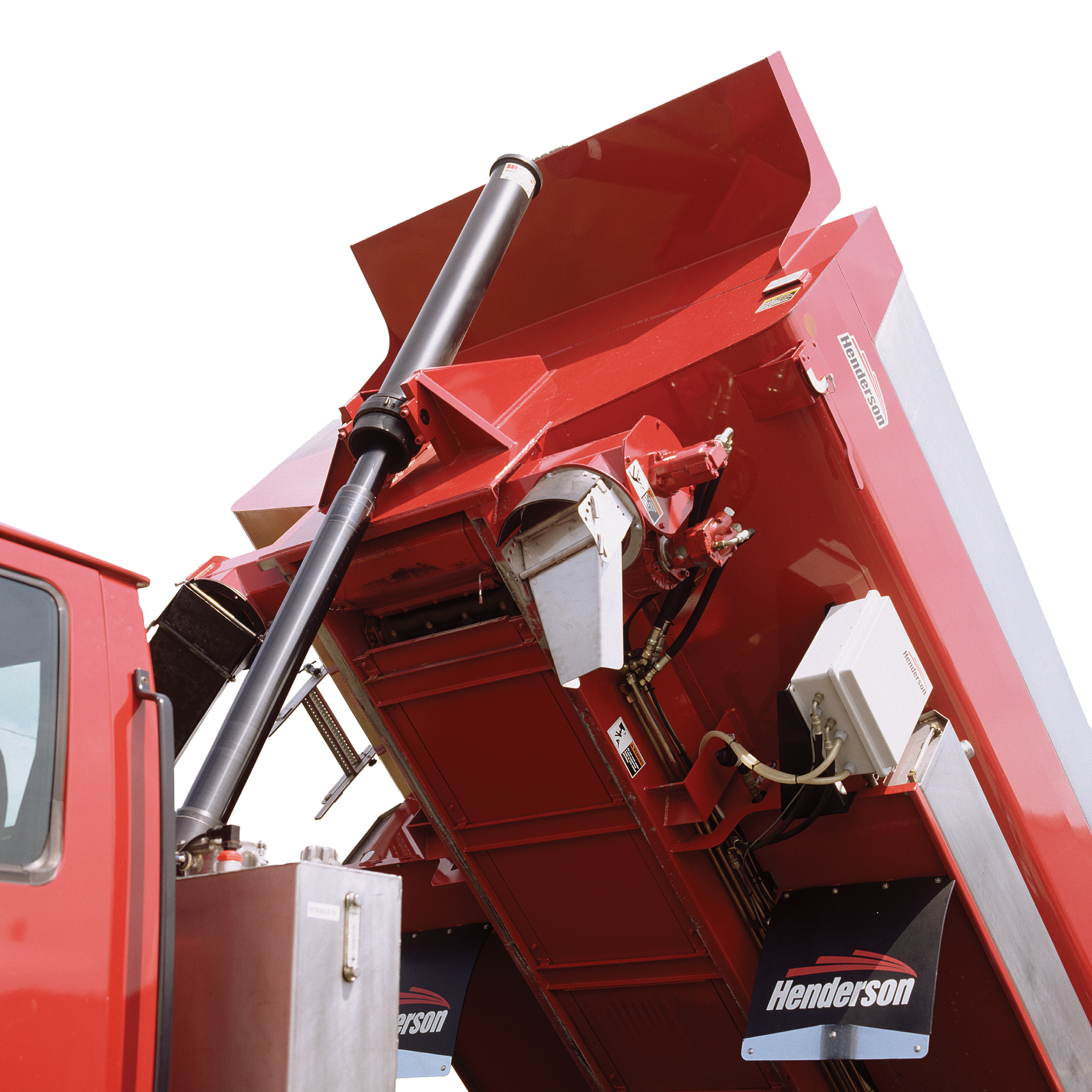

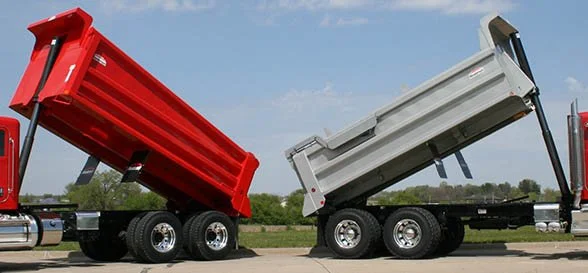

HYDRAULIC TELESCOPIC DUMP BODY HOIST
Henderson's telescopic hoists are available in internal or external mounting, based on your personal preference. They are also available in single acting (power up) or double acting (power up and down) function. Our telescopic hoists will help you achieve the lowest possible center of gravity and working height.
The external hoist has the option of adding our full width hydraulic frame cradle. The frame cradle provides a central location and easy access to all your hydraulic components that would typically mount along side the frame rail. Free up frame rail real estate for battery boxes, tool boxes, etc...
Service Manual

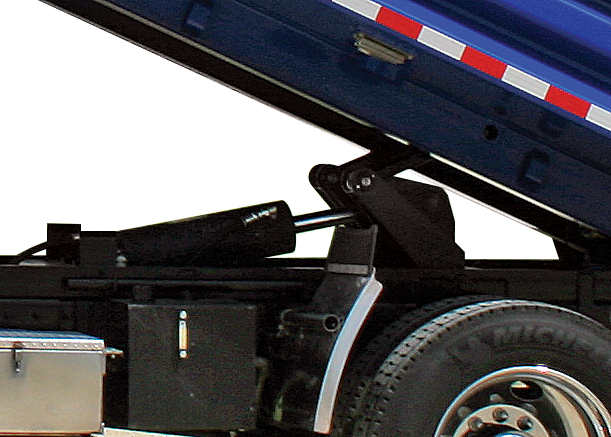

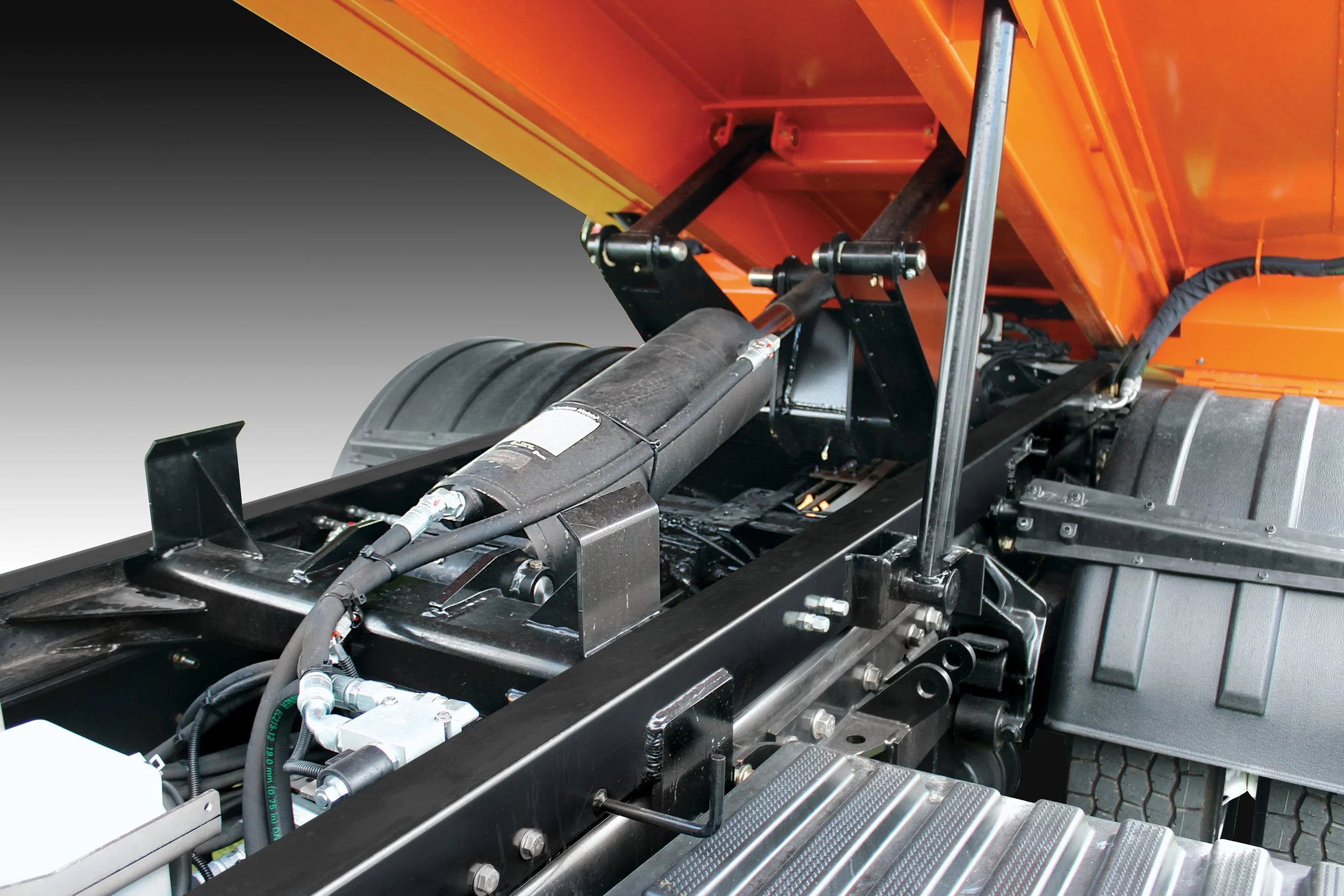

HYDRAULIC DUMP BODY HOIST
Henderson offers reliable underbody hoists for single-axle work trucks, including Class 50 models (7-17, 8-17) and Class 60 models (8-17A, 8-21, 88-24). These traditional hoists use a single-cylinder thrust arm design (dual on 88-24) and operate at pressures up to 2,000 psi with ¾” O-ring ports.
Each hoist features a heavy-duty sub-frame with integrated body props, body guides, and a rear hinge for stability and performance. Rear hinges use 1-1/2” or 2” pins, depending on the model. All hoists provide a 50° max dump angle and come standard with greaseable bushings; greaseless composite bushings are optional.
Service Manual

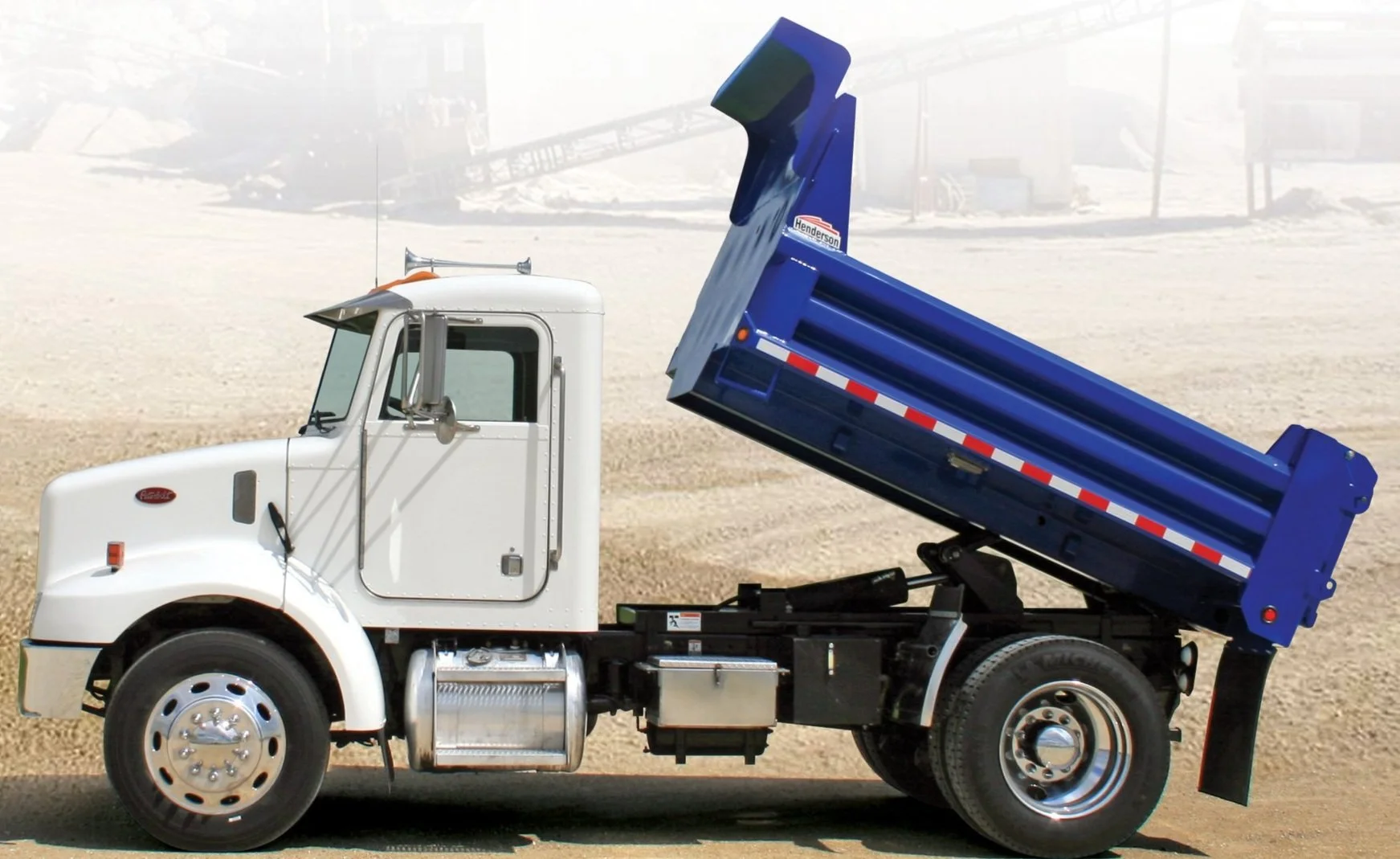

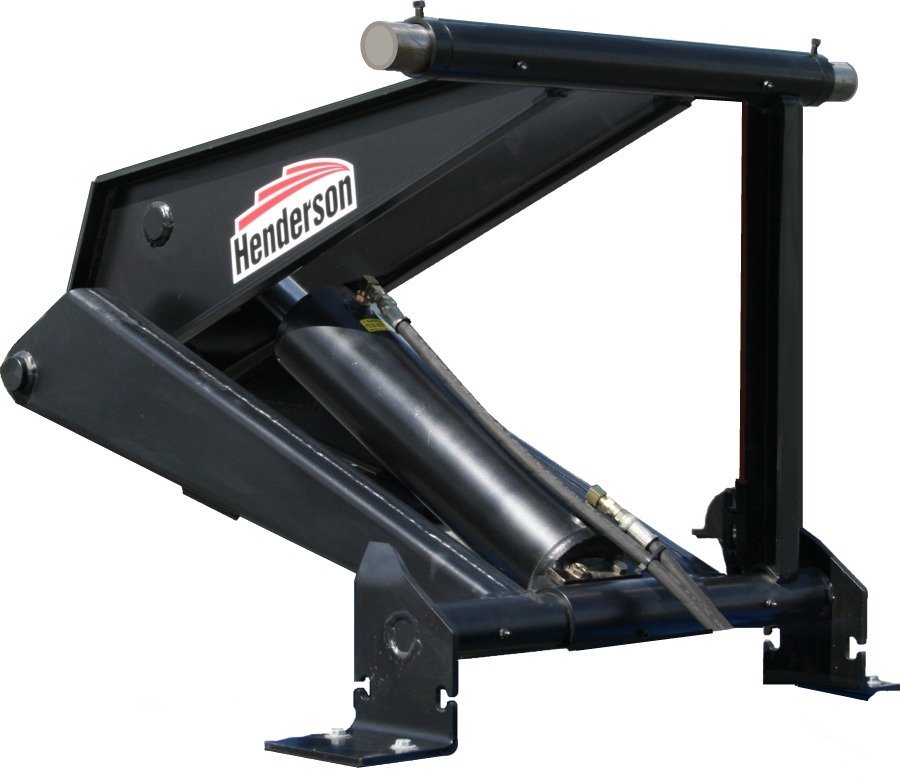

HYDRAULIC DUMP BODY Scissor HOIST
True to Henderson's commitment to building rugged, muscular dump truck bodies, the Bench Press Scissor Hoist has muscle to spare. This unit is available in three models to match body size and load capacity. Body length applications range from 8' to 16', with load capacities up to approximately 30 tons depending on body size and mounting configuration.
Low profile construction provides lower center of gravity and greater load handling stability. The integral body guides eliminate body rocking and all three models are available with sub-frame, offering a low 4" or 5" profile.
Service Manual
