Professional grade road salt brine maker
US Patent 13/656,412

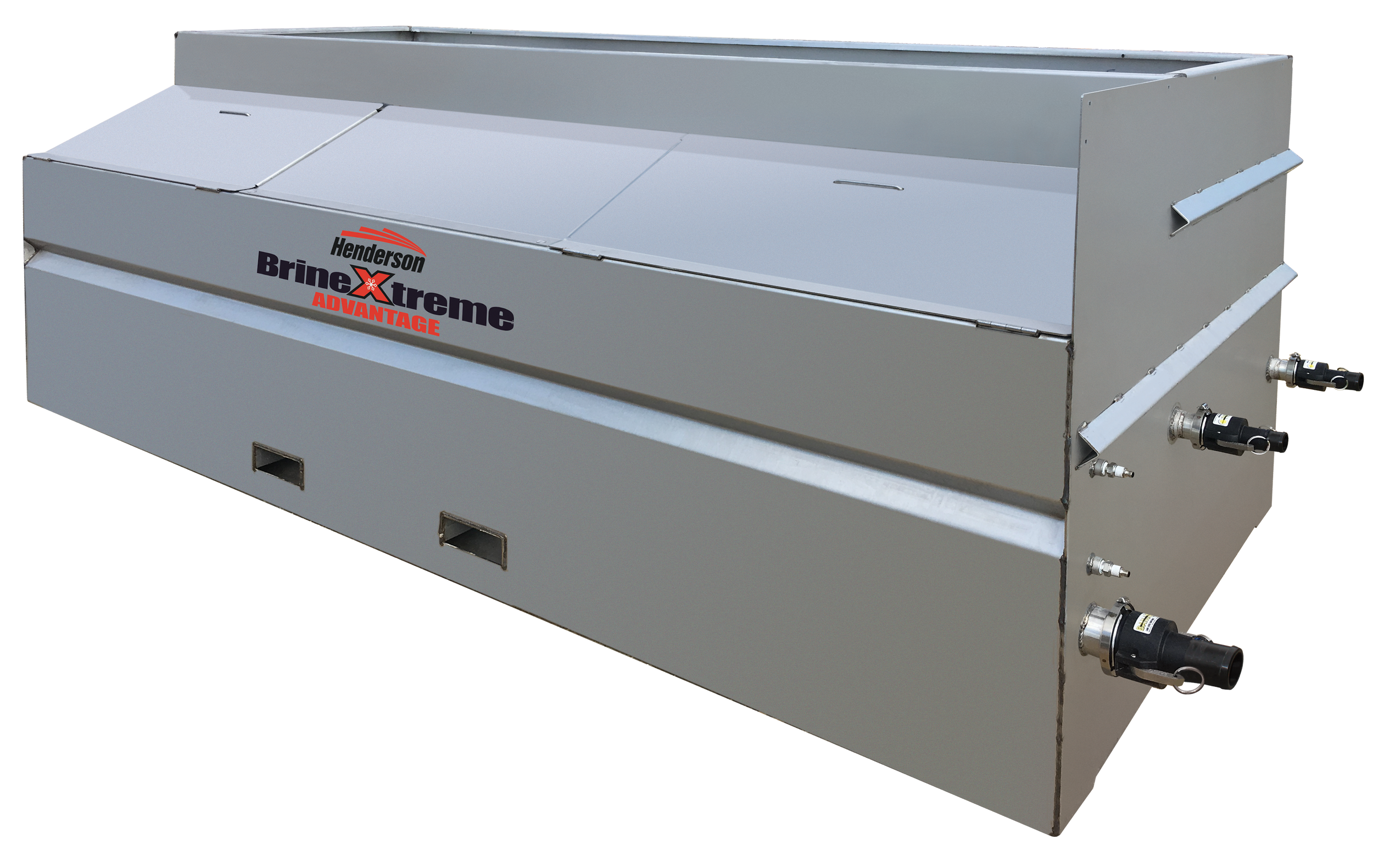

Give your anti-icing brine program an Advantage, the BrineXtreme Advantage. The Advantage is the perfect basic brine making workhorse. High volume salt brine production combined with an unobstructed large clean-out door make this sturdy brine maker a popular choice. It is capable of quickly producing professional grade salt brine with either Pro or Ultimate controls. Built from stainless steel, the tank will last for many years.

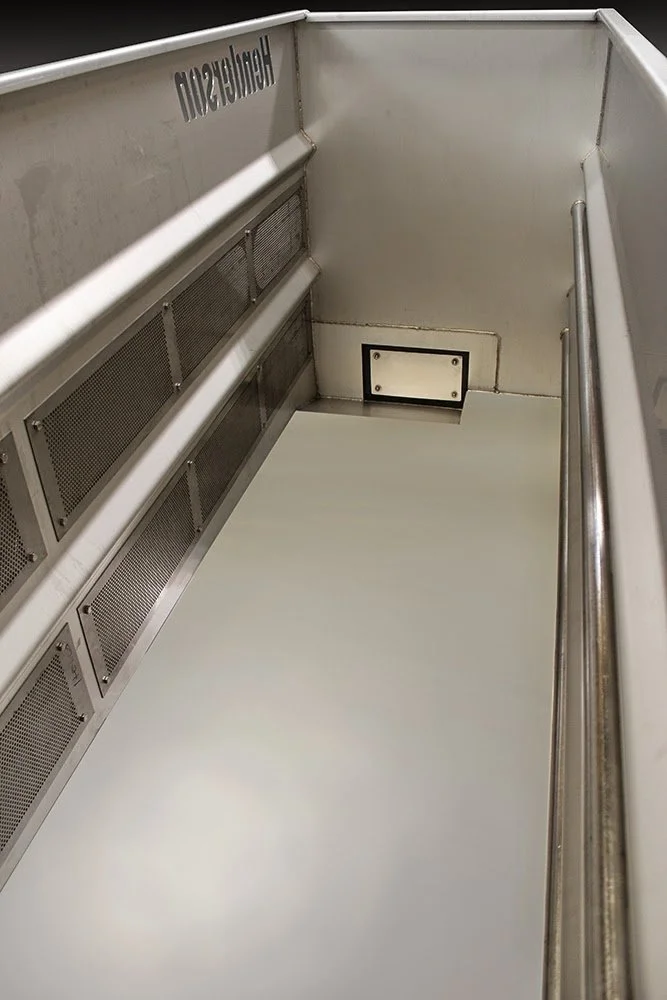

- Stainless steel tank construction- Salt hopper – 4.67 cu. yd. capacity

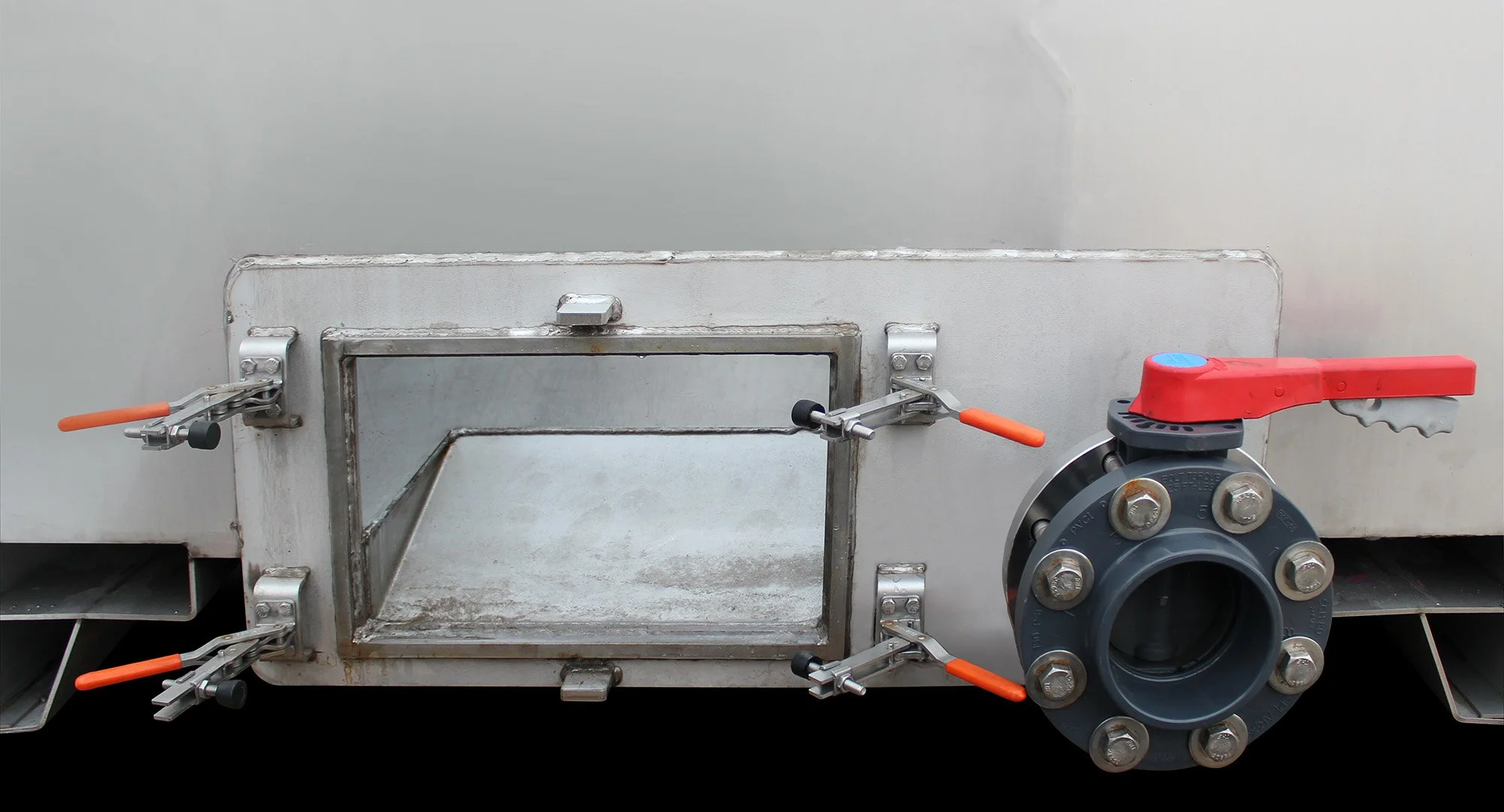

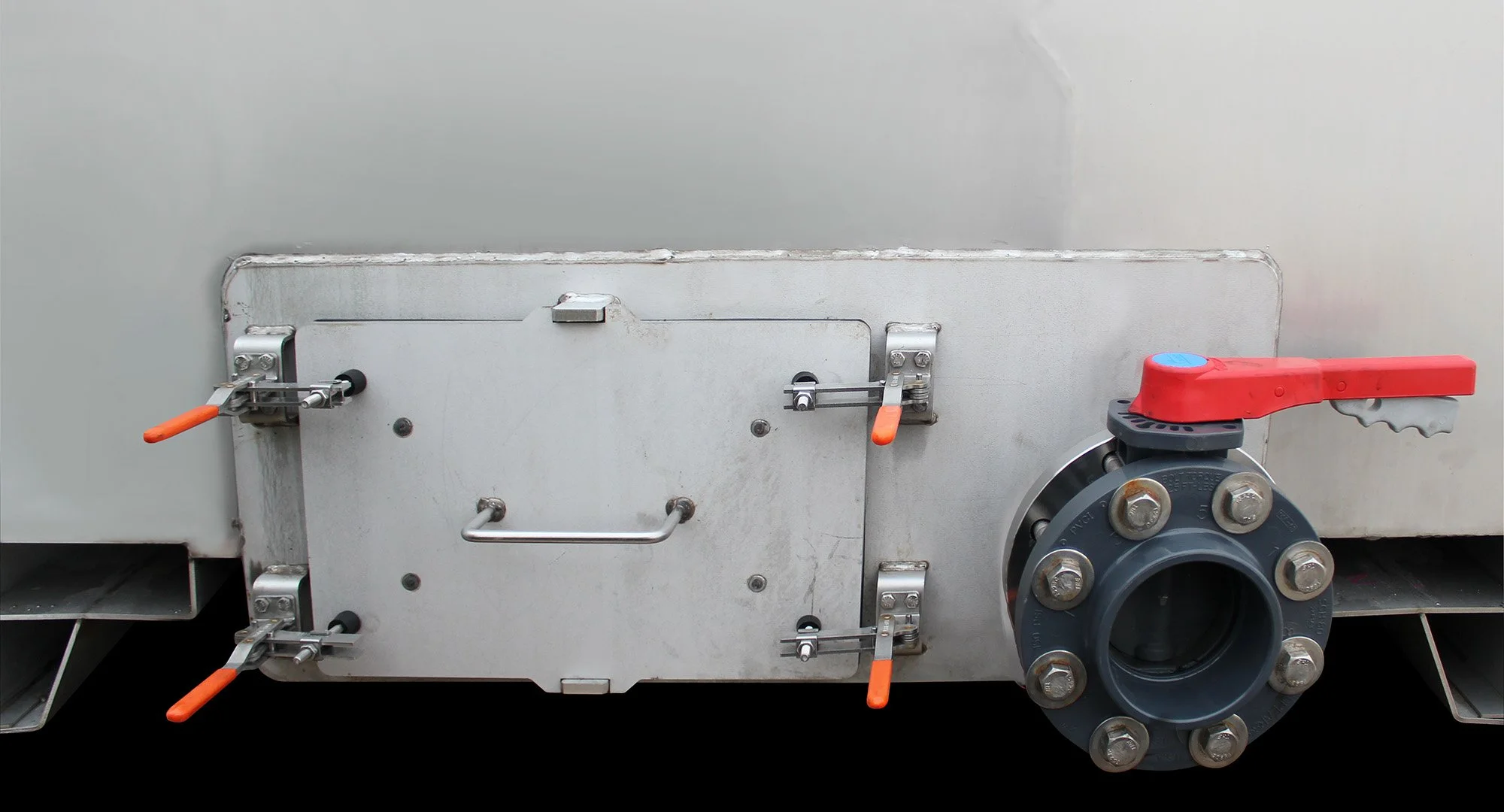

- Large solids clean out door: 15"W x 9"H
- Fines clean out: 3" butterfly valve
- Sloped floor to aid clean-out
- Tank dimensions:132"W x 47"H x 36"D
(not including external valves and plumbing)
- Approx. weight w/o Pro controls: 2200 lbs
- Approx. weight w/ integral Pro controls: 2800 lbs
- Available with Pro or Ultimate Controls (below)
- Optional salt hopper cover available
Service Manual
PROVEN PERFORMANCE UP TO 7,500 GPH
HANDLES TREATED OR UNTREATED ROCK SALT WITH EASE
INDUSTRIAL GRADE COMPONENTS
STAINLESS STEEL CONSTRUCTION
HENDERSON SUPPORTS RESPONSIBLE SALT USE FOR ECOLOGY & ECONOMY
Sustainable snow and ice control should go hand-in-hand with ecological stewardship
Anyone living in a snowbelt state, where pothole dodging has become a survival skill, realizes we have serious issues with our roads and bridges. And what the public is becoming increasingly aware of is...read more>>
Pick a control system

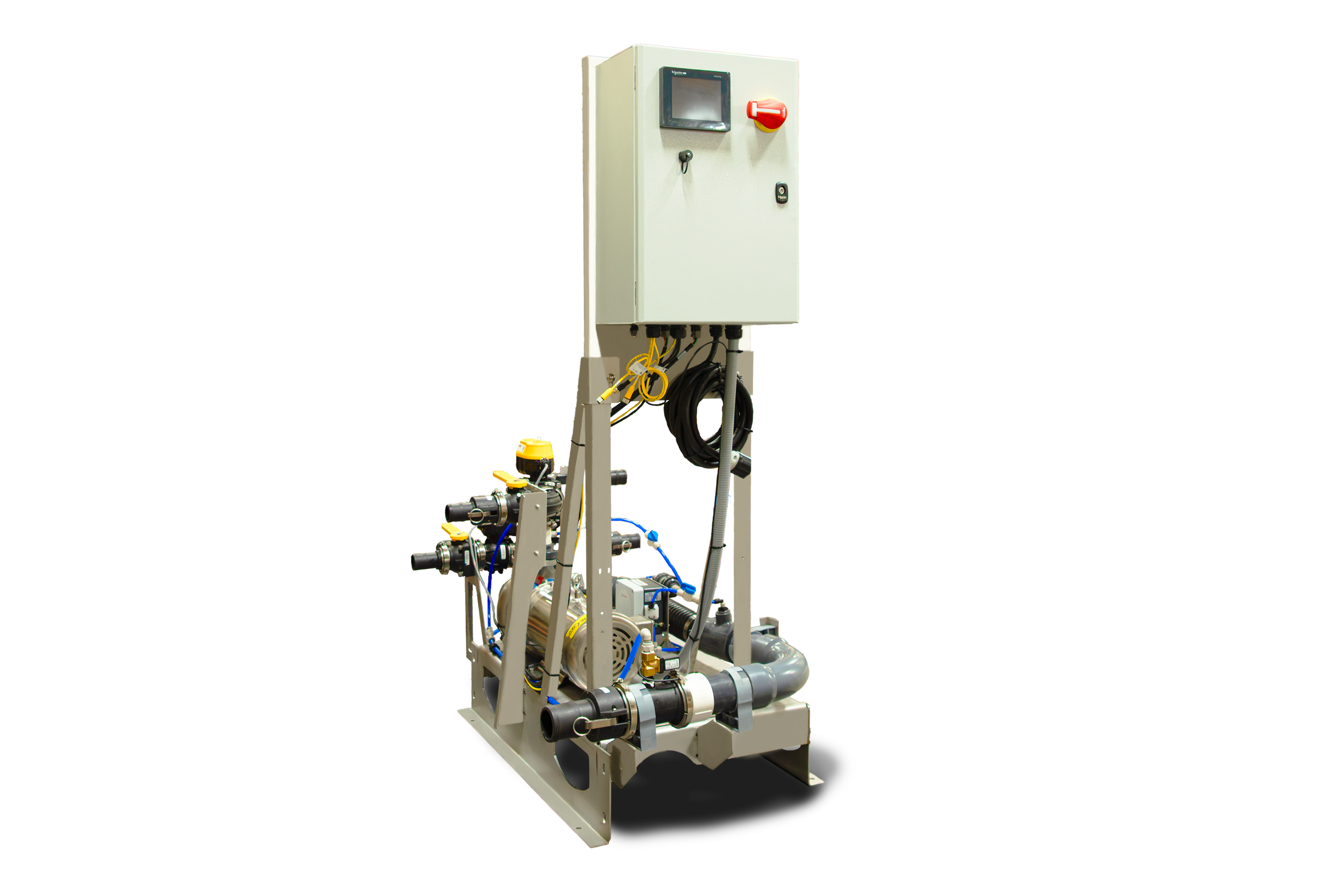

BrineXtreme® Pro Control
Makes basic brine without additives
- Up to 6,000 GPH production
- Precision salt brine concentration (23.3%) –
accurate to 0.01 SG (specific gravity)
- Storage tank level monitoring
- Data Logging
- 6” LCD touch screen display
- Remote access via LAN, cellular or WiFi
- Handles treated or untreated rock salt
- Fill rates of 100 GPM
- Add BrineXtreme Flex Truck Fill Station
to blend up to 3 products
BrineXtreme® ultimate Controls
A complete brine mixing/blending/truck & tankfilling system
- Up to 7,500 GPH production
- Precision salt brine concentration
(23.3%) – accurate to
0.01 SG (specific gravity)
- Storage tank level monitoring
- Data Logging
- 10.4” LCD touch screen display
- Remote access via LAN, cellular or WiFi
- Blends brine w/ up to 4 additives and
3 micro ingredients
- Handles treated or untreated rock salt
- Variable fill rates (20-400 GPM)
- Fills up to 3 trucks simultaneously
- Field expandable
