Professional grade continuous cleaning salt brine maker
US Patent 10,544,340 . Other patents pending.

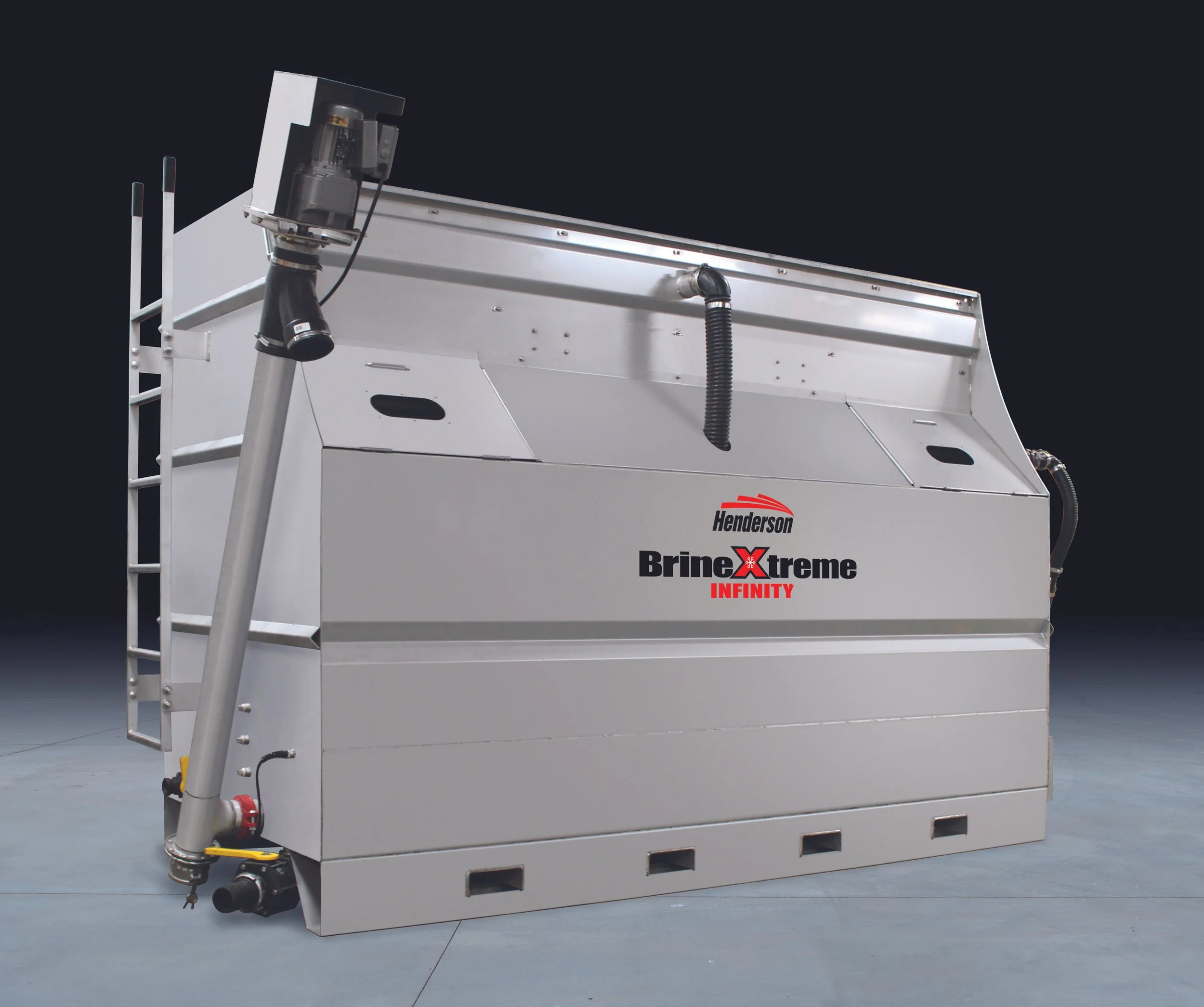

The BrineXtreme Infinity, the industry's leading salt brine production system.
Through the use of automation and intelligent software, this self-cleaning salt brine maker can produce professional grade salt brine at the touch of a button continuously. The manpower required for brine production is greatly reduced with this Auto-Clean Technology.
Target salinity is produced quickly and consistently - even when the salt hopper level drops low. Brine is triple-filtered to keep storage tanks and equipment clean. Brine making pure and easy!
- Fully automated continuous brine production with Auto-Clean Technology: fully
automated continuous cleanout
- Triple-filtered brine
- Stainless steel tank construction
- Salt hopper – 5 cu. yd. capacity
- Tank dimensions:126"W x 78"H x 58"D
(not including external motors, valves or plumbing)
- Approx. weight w/o Pro controls: 2600 lbs
- Approx. weight w/ integral Pro controls: 3000 lbs
- Available with Pro or Ultimate Controls (below)
- Optional salt hopper cover available
Service Manual
100%
CONTINUOUS SELF CLEANING
AUTOMATED SALINITY MANAGEMENT
REPEATABILITY
PROVEN PERFORMANCE UP TO 7,500 GPH
HANDLES TREATED OR UNTREATED ROCK SALT WITH EASE
INDUSTRIAL GRADE COMPONENTS
STAINLESS STEEL CONSTRUCTION
HENDERSON SUPPORTS RESPONSIBLE SALT USE FOR ECOLOGY & ECONOMY
Sustainable snow and ice control should go hand-in-hand with ecological stewardship
Anyone living in a snowbelt state, where pothole dodging has become a survival skill, realizes we have serious issues with our roads and bridges. And what the public is becoming increasingly aware of is...read more>>
Pick a control system

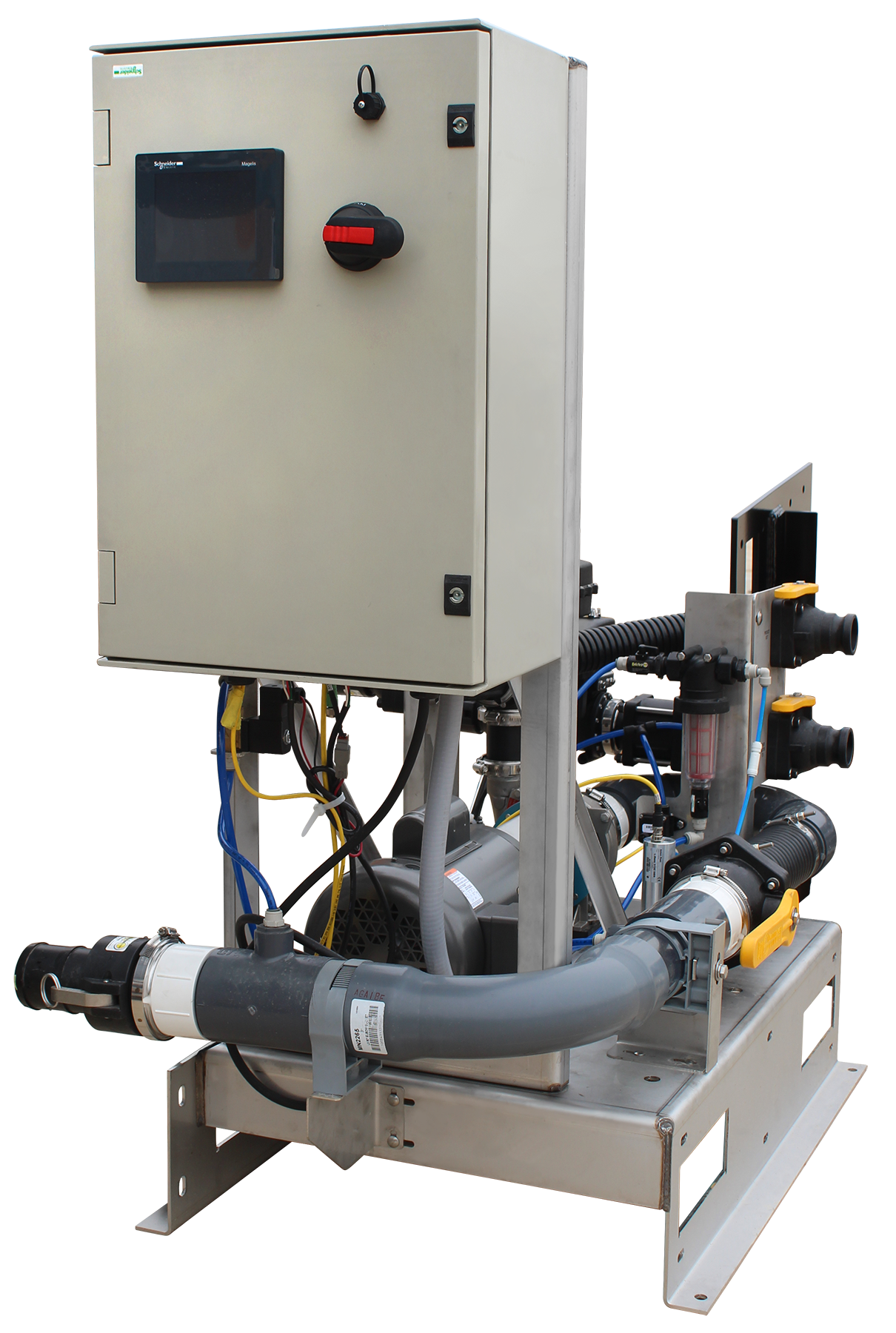

BrineXtreme® Pro Control
Makes basic brine without additives
- Up to 6,000 GPH production
- Precision salt brine concentration (23.3%) –
accurate to 0.01 SG (specific gravity)
- Storage tank level monitoring
- Data Logging
- 6” LCD touch screen display
- Remote access via LAN, cellular or WiFi
- Handles treated or untreated rock salt
- Fill rates of 100 GPM

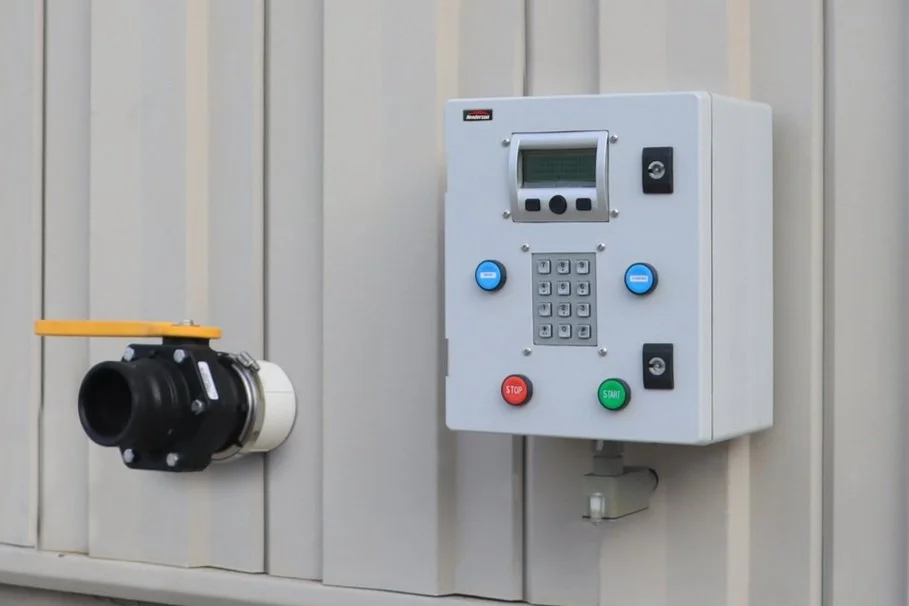

- Add BrineXtreme Flex Truck Fill Station
to blend up to 3 products

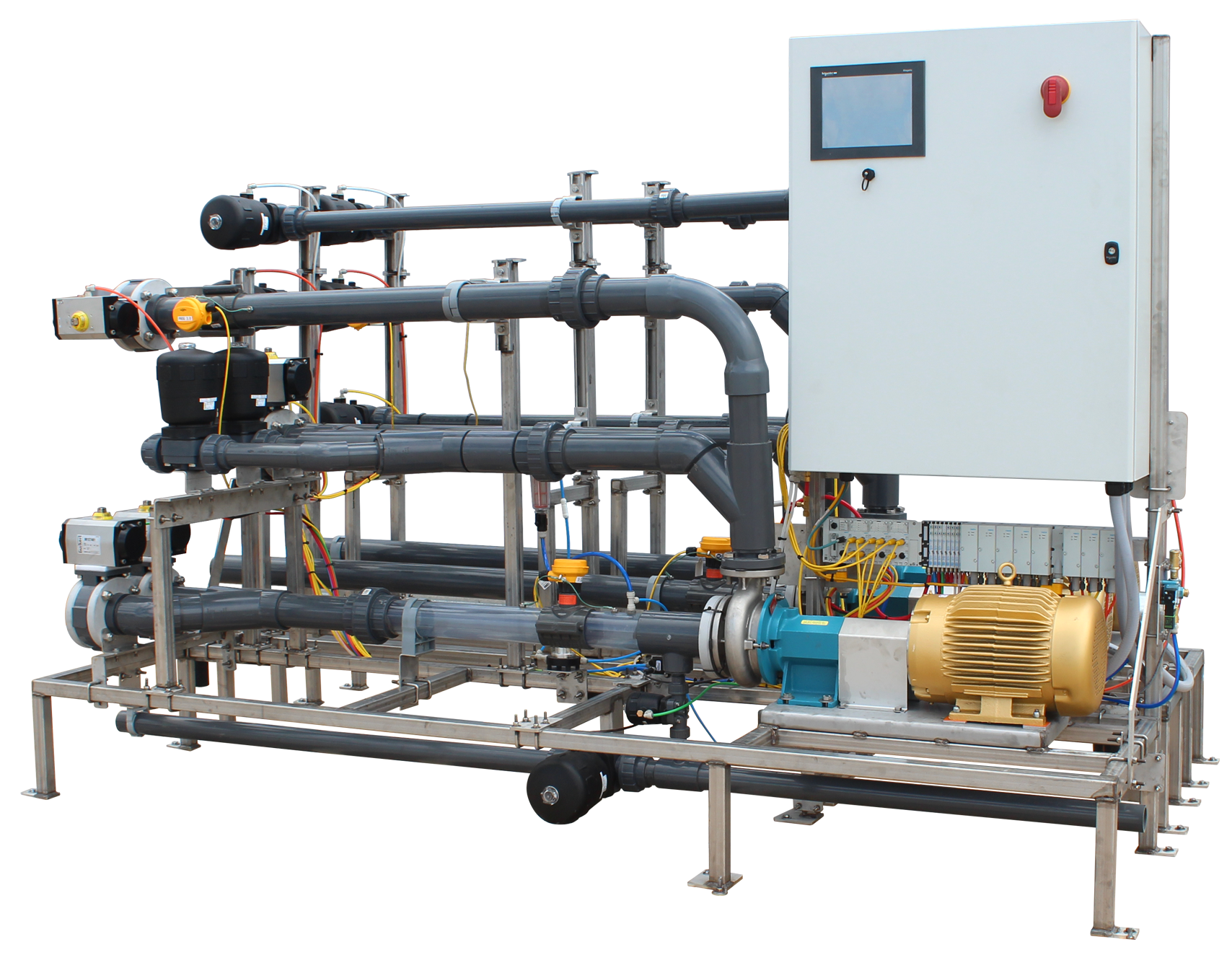

BrineXtreme® ultimate Controls
A complete brine mixing/blending/truck & tankfilling system
- Up to 7,500 GPH production
- Precision salt brine concentration
(23.3%) – accurate to
0.01 SG (specific gravity)
- Storage tank level monitoring
- Data Logging
- 10.4” LCD touch screen display
- Remote access via LAN, cellular or WiFi
- Blends brine w/ up to 4 additives and
3 micro ingredients
- Handles treated or untreated rock salt
- Variable fill rates (20-400 GPM)
- Fills up to 3 trucks simultaneously
- Field expandable

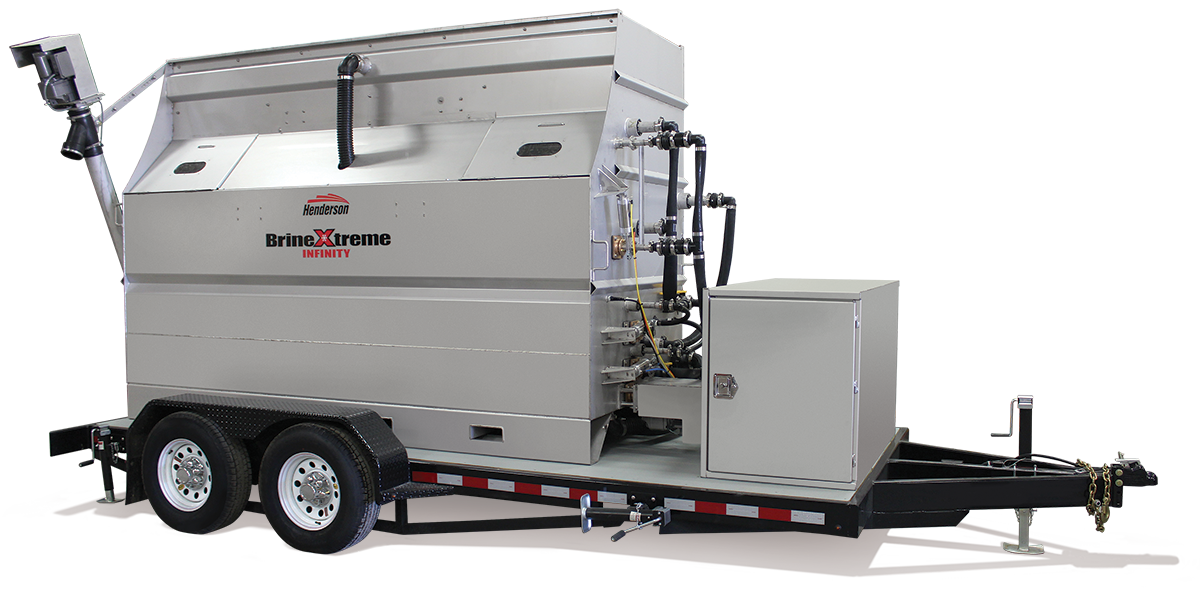

BrineXtreme® Infinity™ Mobile Unit
US Patent 10,544,340
BrineXtreme Infinity is available on a portable platform trailer with either Pro or Ultimate controls.
